Product Overview

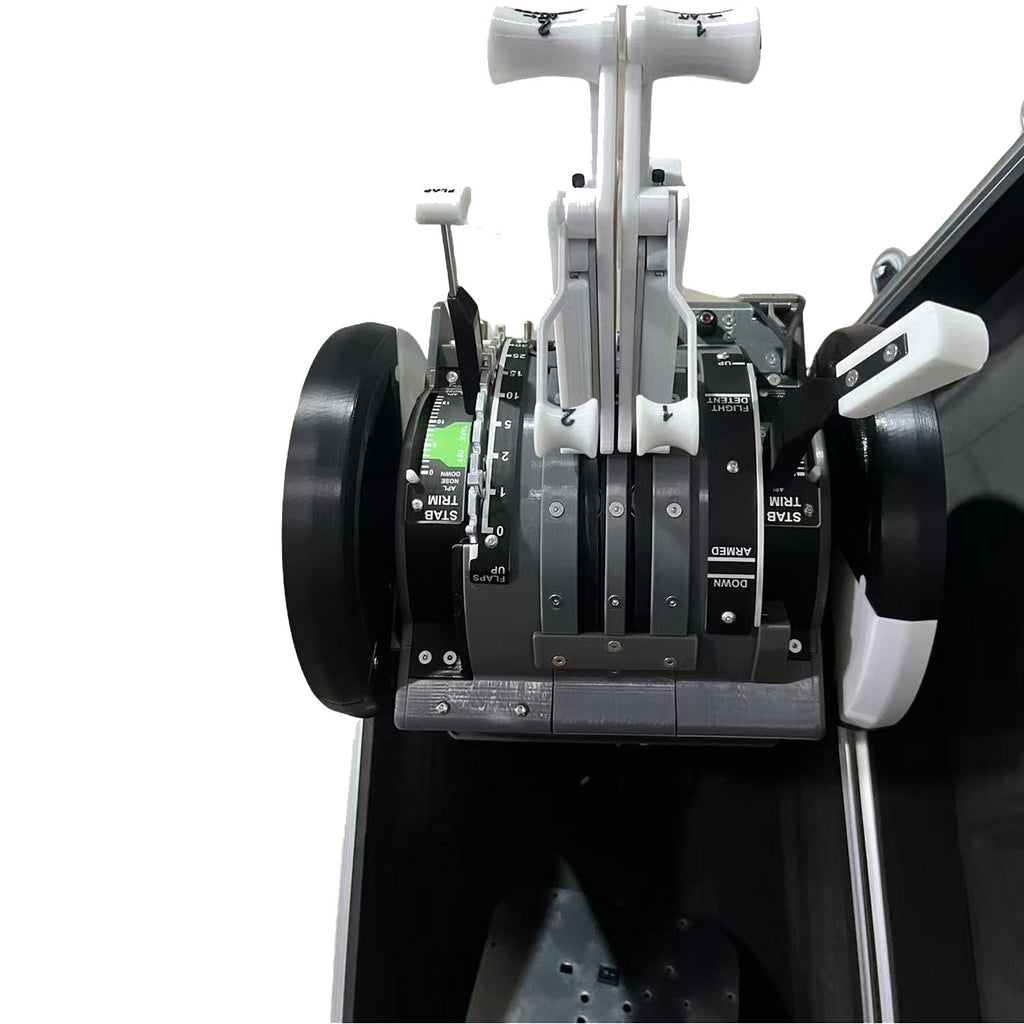

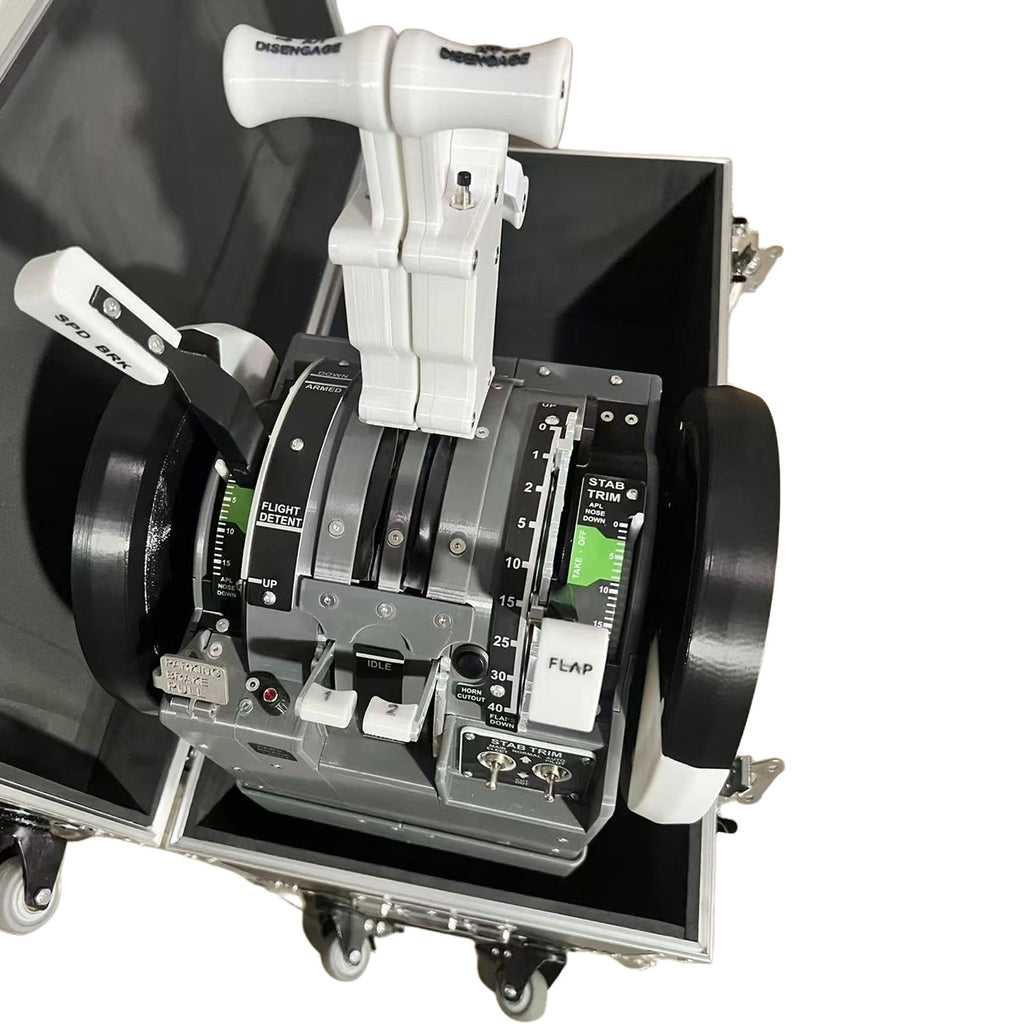

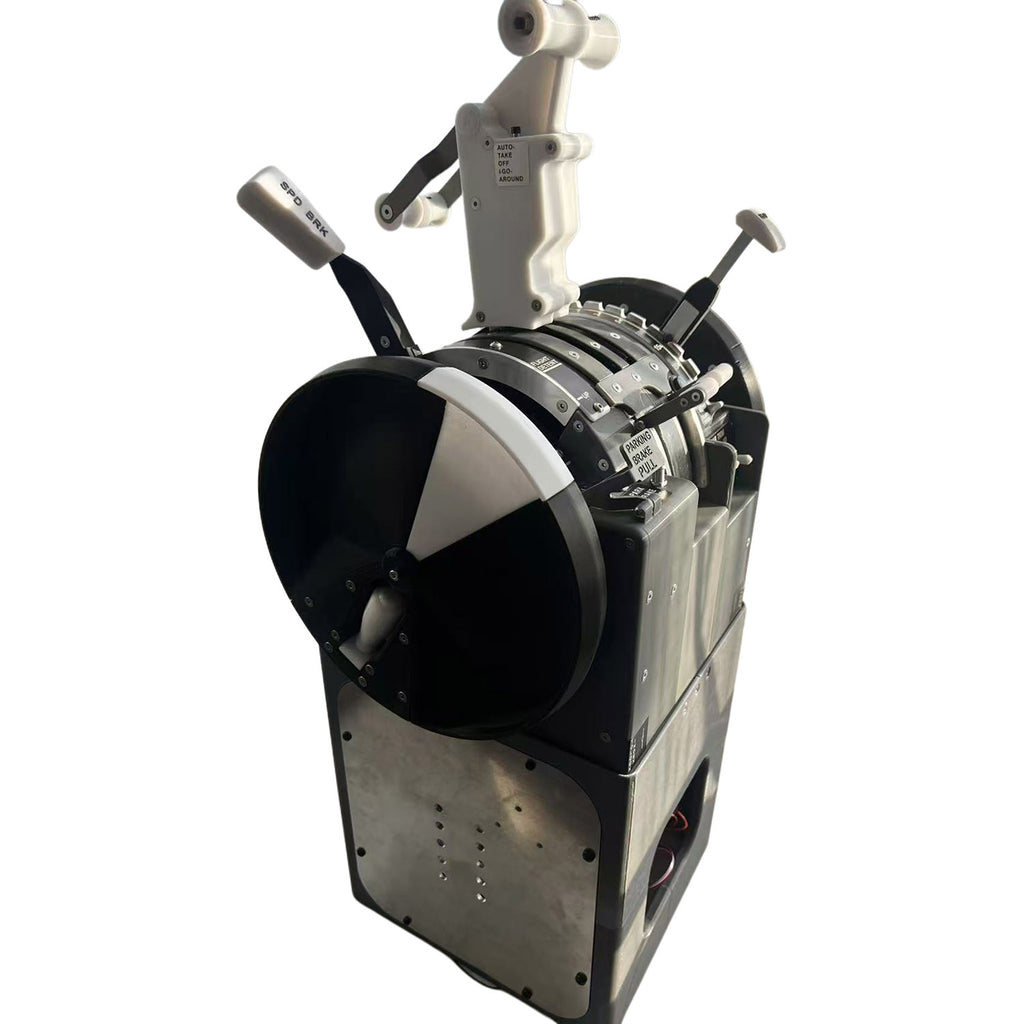

This powered throttle quadrant is fully developed in‑ house by a professional flight simulation company. It is compatible with all major flight simulators and popular aircraft models. With our own PCB, firmware, and companion app, no additional software like MobiFlight is required. The official app enables one‑ click full motion mode for multiple Boeing 737 models.
Key Features
- One‑ click full motion mode for: Zibo 738 (X‑ Plane), PMDG 738 (MSFS), iFly 737MAX, and Asobo 737MAX (MSFS2024)
- Supports auto spoilers, auto throttle, and manual auto‑ throttle disconnect
- Wear‑ prone componentsare CNC ‑ machined metalfor durability
- HID modesupport – allbuttonsand axesdirectly assignable in sim platforms
- Cross‑ platform, all‑ aircraft compatibilit
Hardware Specifications
| Item |
Specification
|
| Connection |
1×USB+12Vexternal power |
| Setup |
Plug & play, no driver required |
| Dimensions (L×W×H) |
28 × 34 × (72–75)cm |
| Weight |
Approx. 12.5 kg |
MTUFirmware Highlights
- Button Mapping– Solves X‑ Plane’skey‑ release detection issue
- Dual Motor Drive– Higher speed, faster trim wheel response
- HID Support– 8 axes, 16 physical buttons + 16 mapped buttons– detected by all major games
- Closed‑ Loop Motor Control– Eliminates step‑ count errors
- One‑ Click Electric Mode– For X‑ Plane Zibo 738, MSFS PMDG 738, MSFS2024 Asobo
737MAX, iFly 737MAX
- In‑ Game Binding– Buttons and axes assigned directly inside the sim; lights/motors/servos communicate automatically via telemetry app
- Microsoft Mode (Axis Merging)– Enable “Merge Axes” in the app, then bind the axis 0
100% in MSFS 2020/2024. The throttle axis will control forward thrust, while pulling the reverse lever directly controls the reverse thrust travel in the simulator
