Flight Simulate App

The Flight Simulate App is a unified configuration and force feedback control platform designed exclusively for our company’s flight simulation hardware ecosystem.

It provides centralized setup, calibration, and real‑time force feedback driving for joysticks, rudders, collective bases, YOKEs, harnesses, and the full electric Boeing MTU throttle.

Download Flight Simulate App

Key Modules

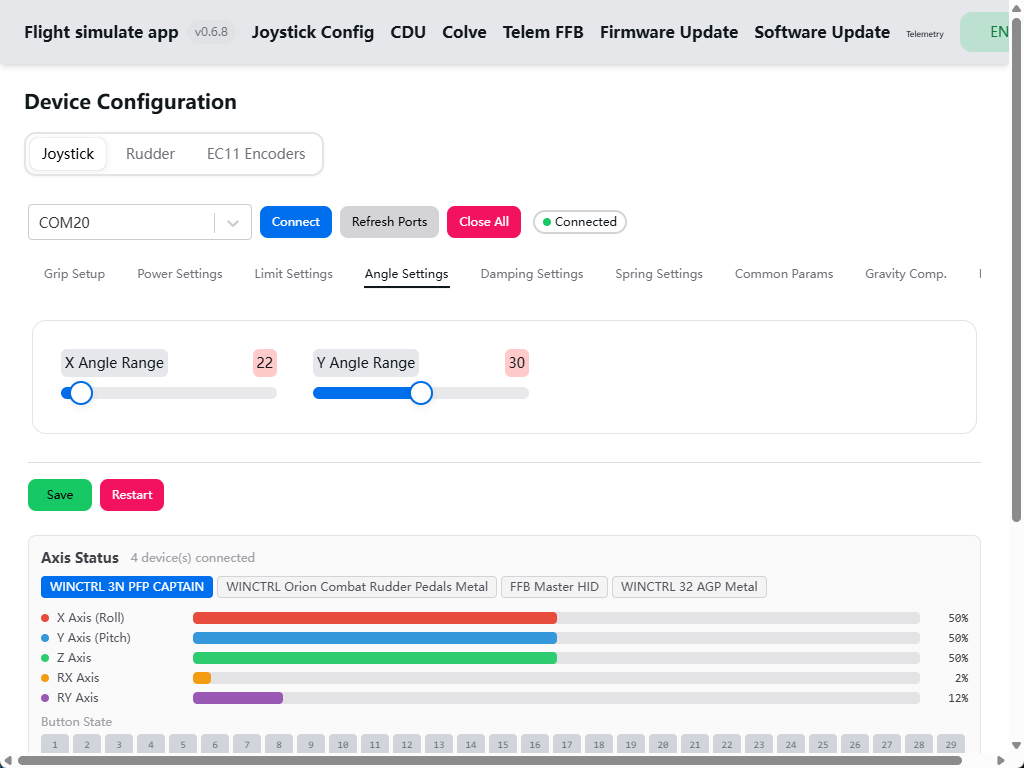

Joystick Config

• Configure and calibrate our company’s joysticks and rudder pedals

• Adjust angle, damping, spring force, and other physical parameters

• Set deadzones and response curves (linear / exponential)

• Map physical buttons to virtual commands

• Save and load device profiles


Colve

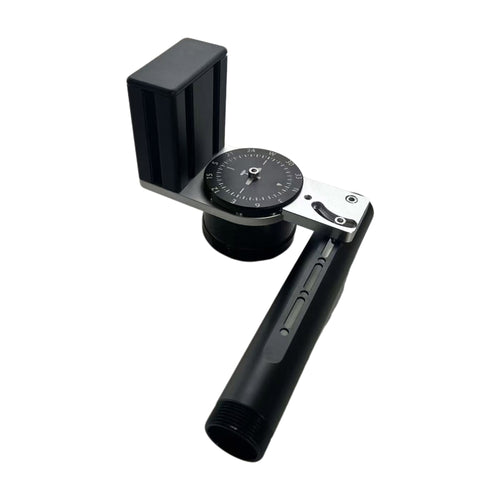

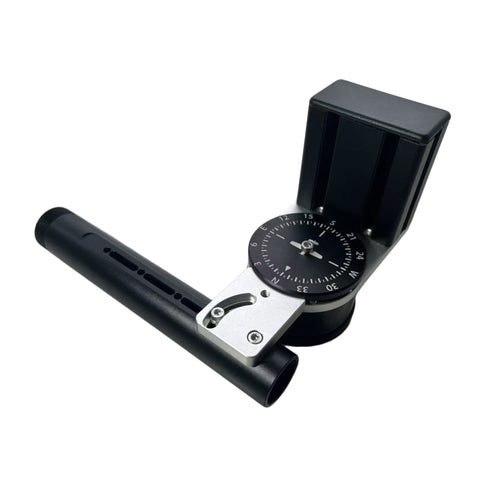

• Dedicated to your force feedback collective base (for helicopter simulation)
• Calibrate position sensors (neutral and travel limits)

• Set damping, friction, and phase‑based FFB strength (hover / cruise / high speed)

• Enable torque safety limits

Telem FFB – Centralized Force Feedback Engine

• Drives all your FFB hardware from a single telemetry stream
• Supported devices:

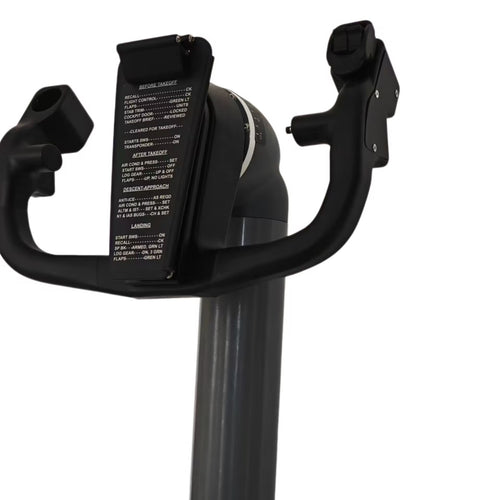

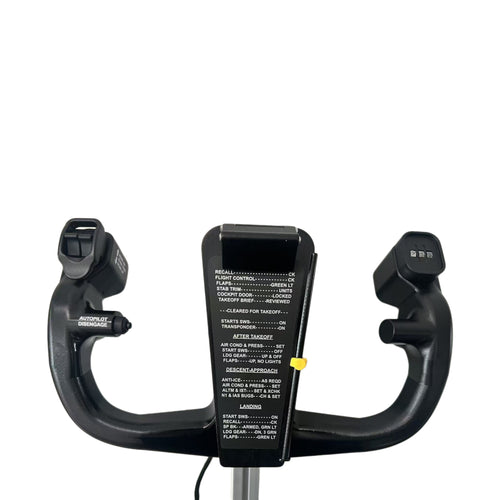

  Force Feedback YOKE
  Force Feedback Joystick
  Force Feedback Rudder Pedals
  Force Feedback Harness

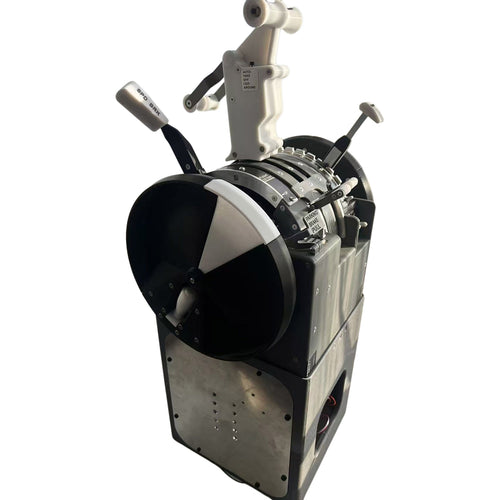

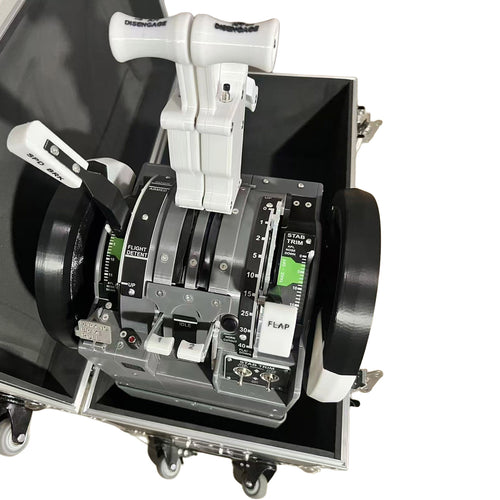

  Full Electric Boeing MTU Throttle
• Effects include: stick shake, runway vibration, G‑force, aerodynamic load, harness tension

• Independent gain control for each device
• Receives telemetry from external simulators (X‑Plane, MSFS, etc.)


Firmware & Software Update

• Update device firmware and app software directly from the interface

Built‑in Debug Mode (No Simulator Required)

Each module (`Joystick Config`, `Colve`, `Telem FFB`) includes a debug/test mode that can send test signals – such as vibration, stick shake, damping, or tension – to verify hardware functionality without connecting to a flight simulator.

Typical Workflow

1. Connect your hardware (joystick, rudder, collective, FFB devices, etc.)

2. Use `Joystick Config` or `Colve` to calibrate and configure each device

3. In `Telem FFB`, select which FFB devices are connected and adjust gains

4. Connect to a flight simulator (X‑Plane, MSFS, etc.) for live telemetry

5. Fly – the app drives all force feedback effects in real time

For quick hardware testing, use the debug mode inside any module.

Supported Hardware (Your Company’s Products)

Key Benefits

• One software for your entire ecosystem – no third‑party tools needed
• Centralized FFB engine – all devices work together from the same telemetry data

• Debug mode included – test hardware without a simulator

• Modular and expandable – easy to add new devices or effects in the future
